Push-on fittings are specifically designed for
use on "Push-On" hoses up to 300 psi (do not use on any other type of
hose). When used with Push-On hose, the defined barb on the fitting and the
special hose reinforcement will provide sufficient grip thereby eliminating the
need for any hose clamps. This provides for a quick and easy method of coupling
hoses. These fittings may require a fine mist of oil (DO NOT use grease) in
order to push completely into the hose and snug up right to the yellow plastic
ring at the top of the barb. DO NOT use any form of a clamp as it could distort
the hose and result in actually decreasing coupling integrity.

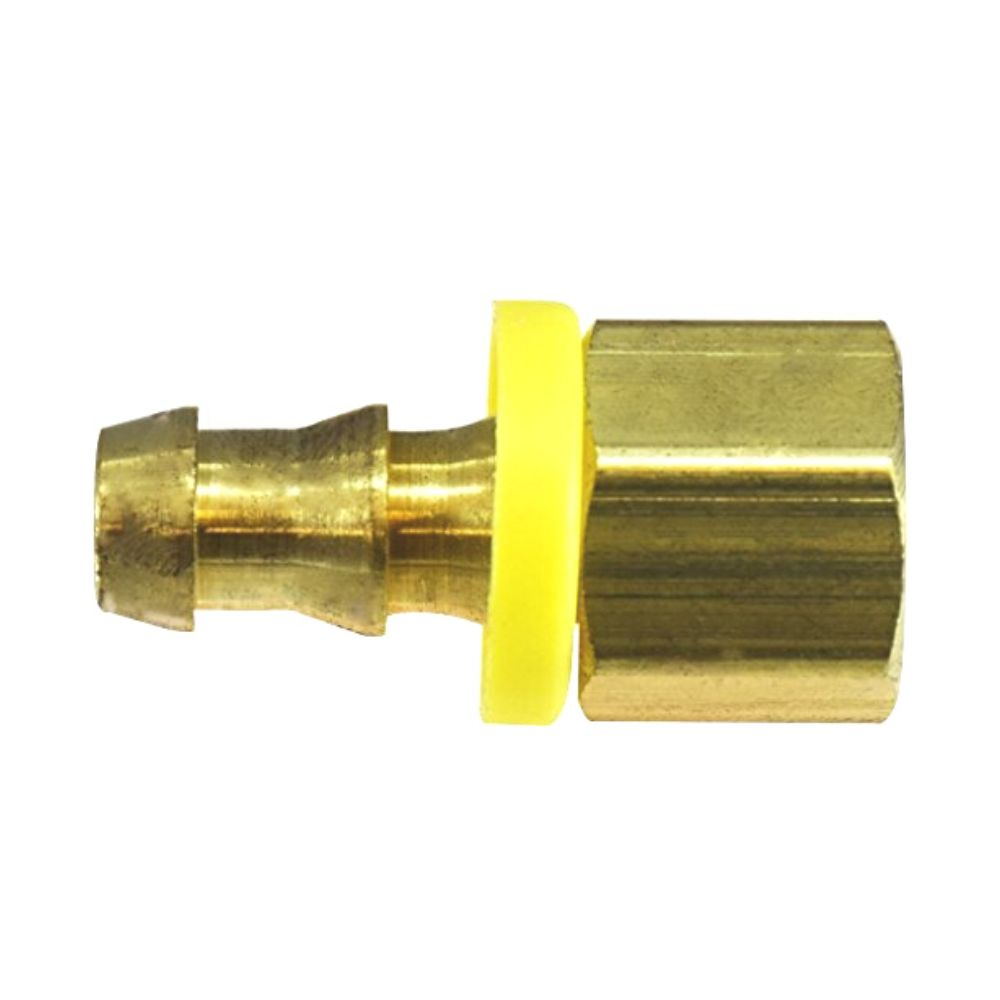

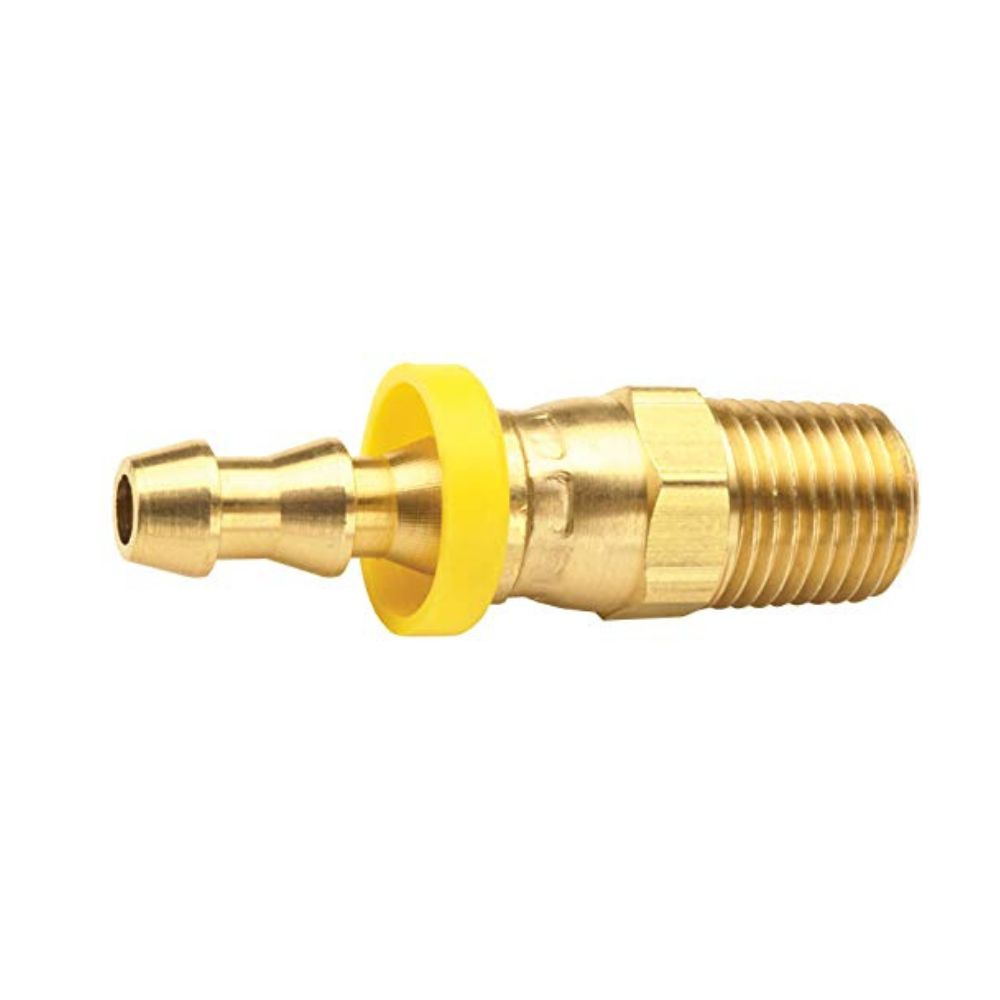

Types of Brass Push-On Hose Fittings : Male Adapter, Rigid Female Adapter, Male Swivel,

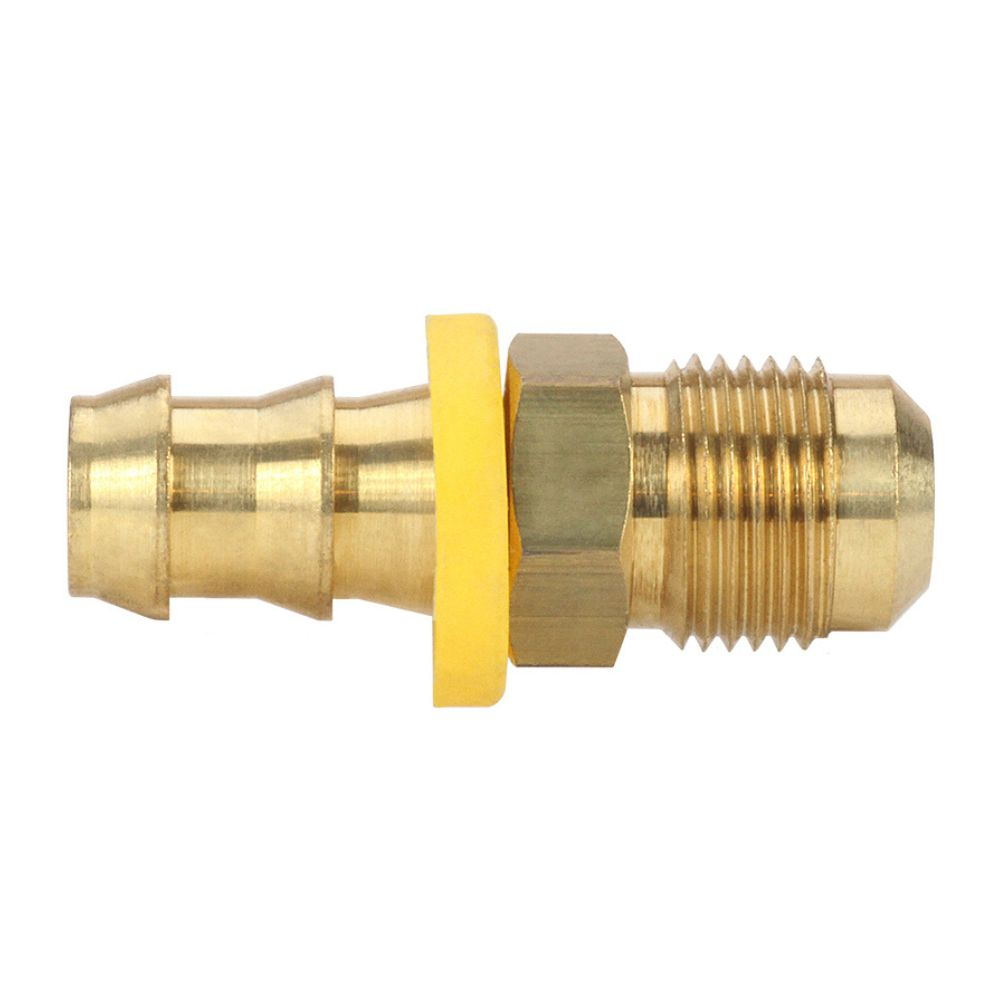

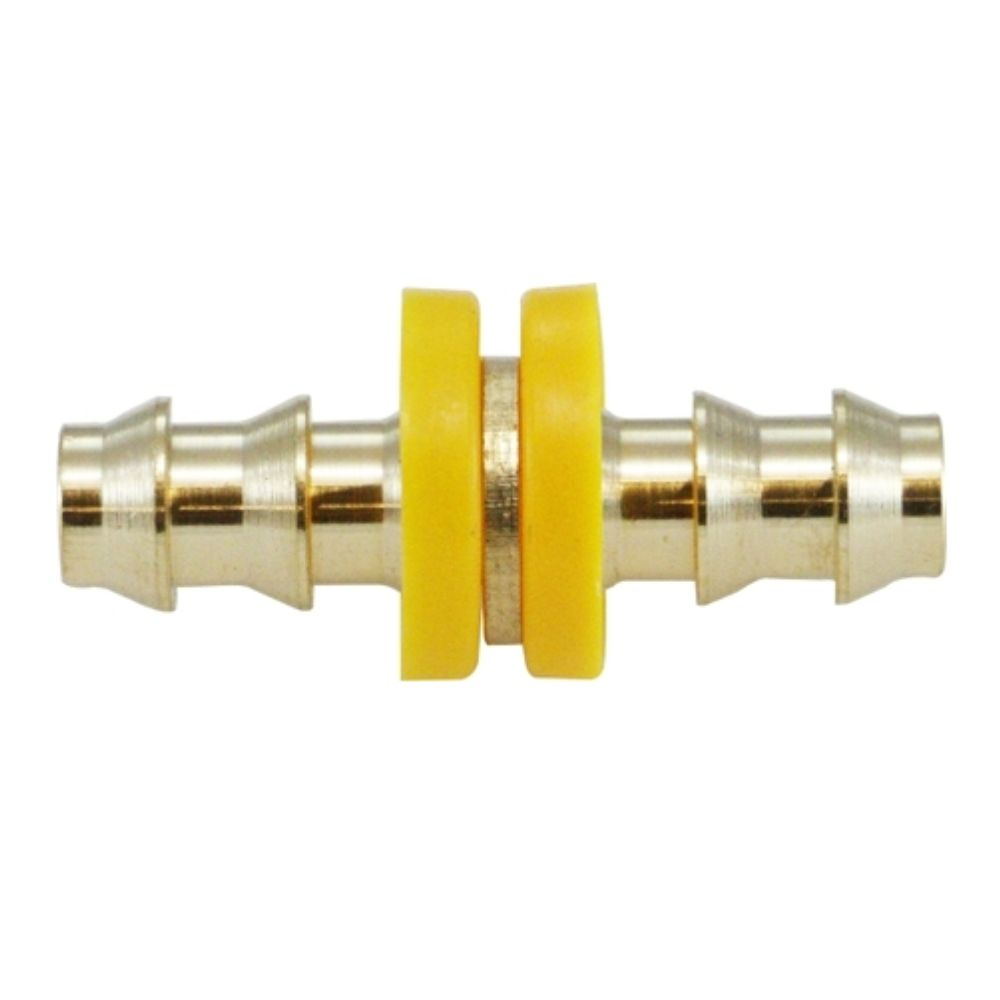

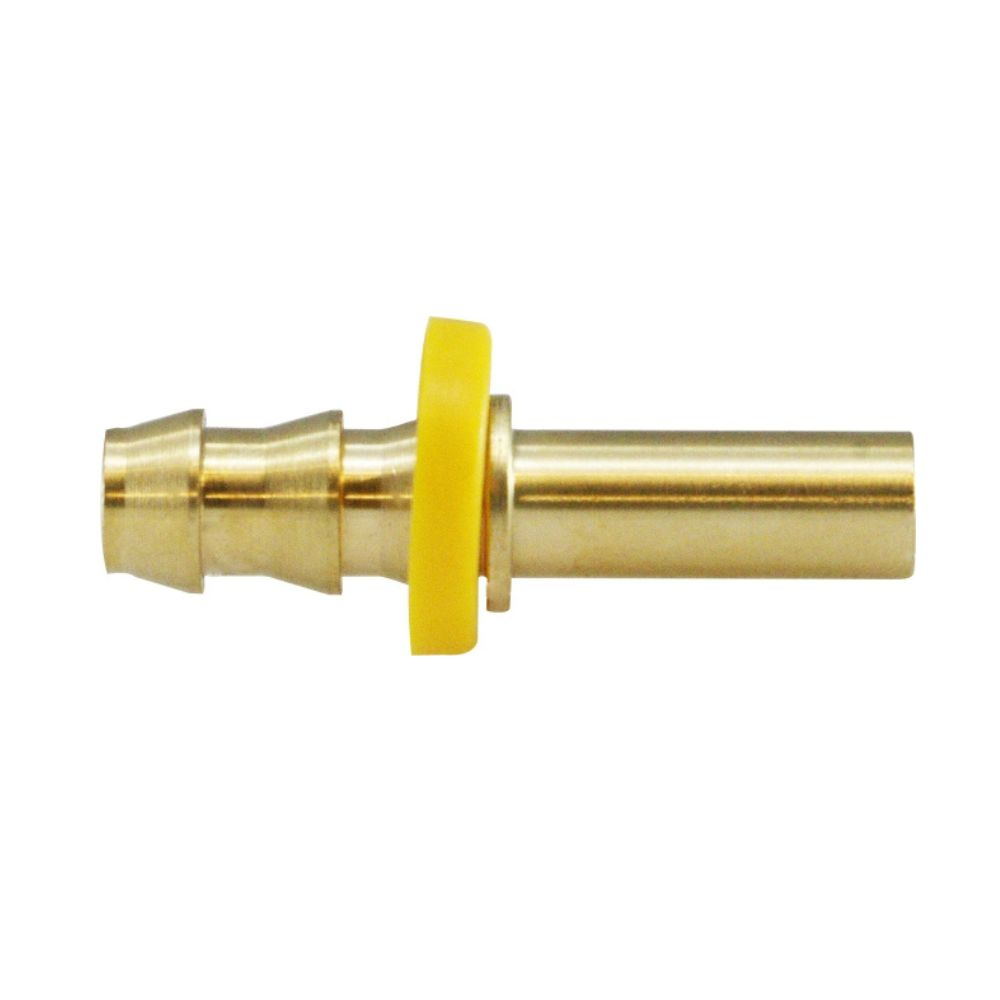

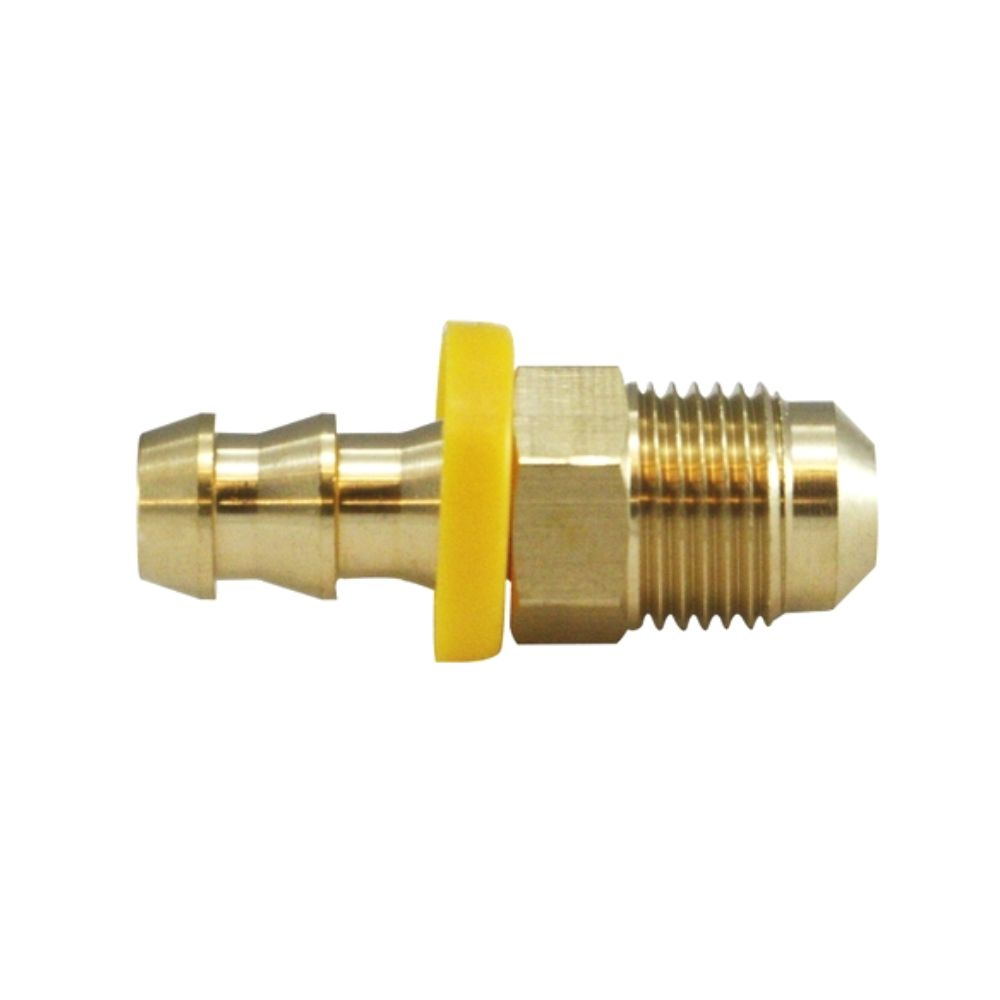

Hose Splicer, Rigid Tube Adapter, Male SAE Flare Adapter, Male JIC Flare Adapter,

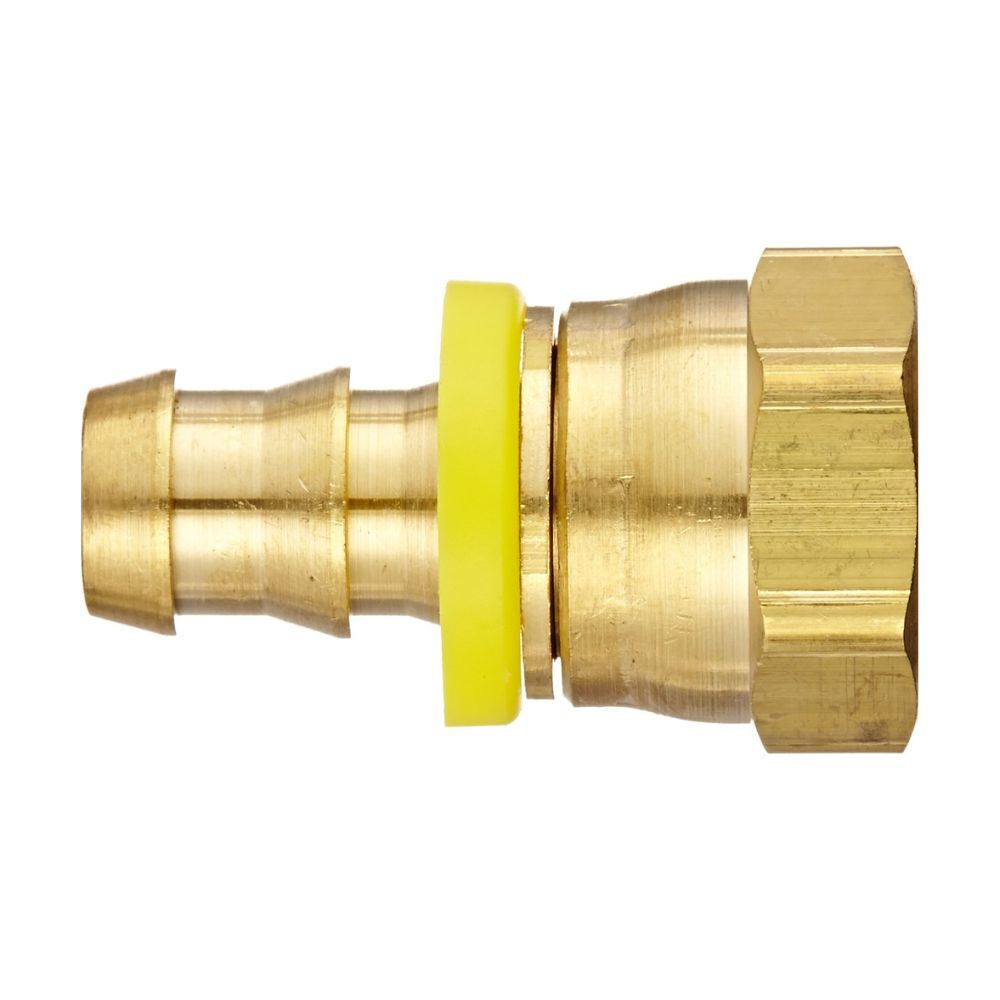

SAE 45 Degree Female Swivel, JIC 37 Degree Female Swivel and SAE/JIC Dual
Female Swivel.
Finish and Plating: Natural Brass, Nickel, Chrome
Thread of Brass Hose Nipples: BSP (gas), BSPT, NPT, NPTF, UNF and
metric. Any threads as per customer's design
Material: CA360 Brass for Bar stock Fittings & CA377 Brass For
Forged Fittings.
Temperature & Working Pressure Ranges: From -40 F To +160 F At 150 PSI Maximum or temperature and type of tubing used are important
factors.
push-on hose barb fittings typical application:
low pressure air, fuel, lube, and oil lines
Features: Corrosion resistant,
economy range, wide thread choice, specials available as per customer drawings
and specifications.
