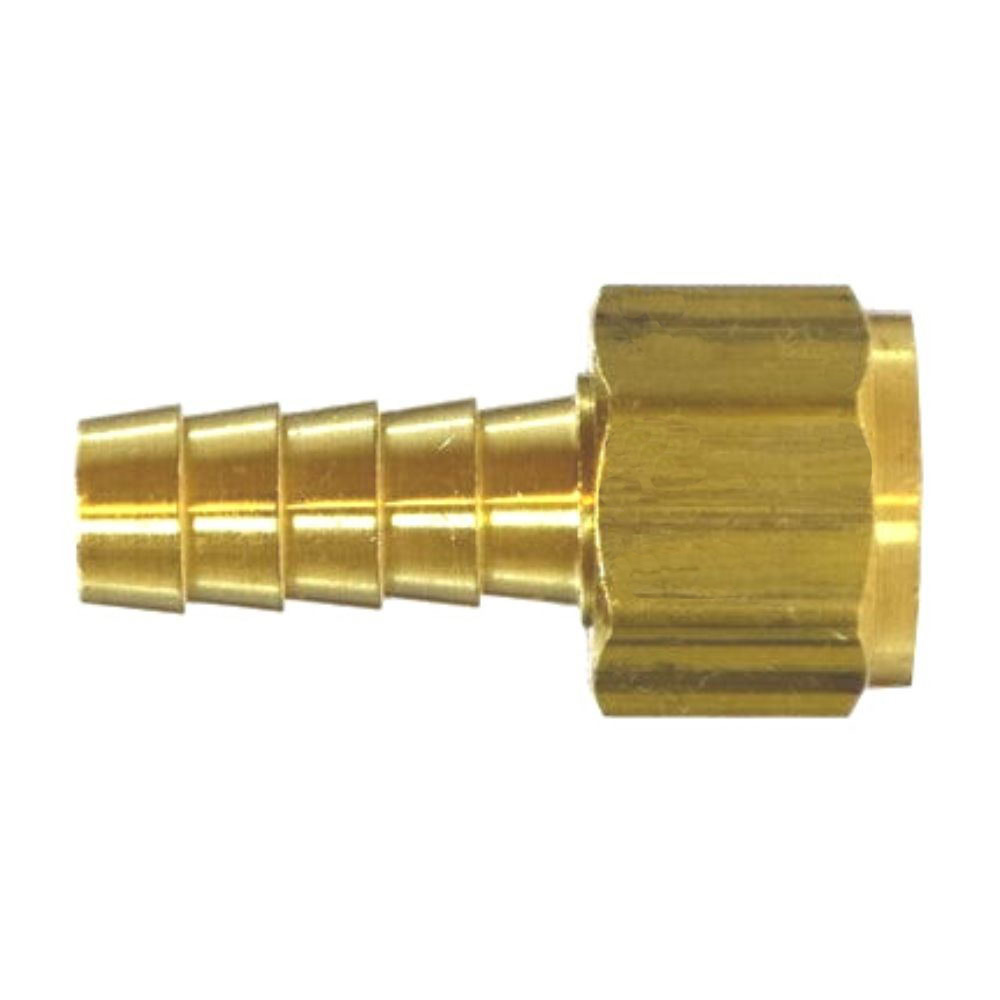

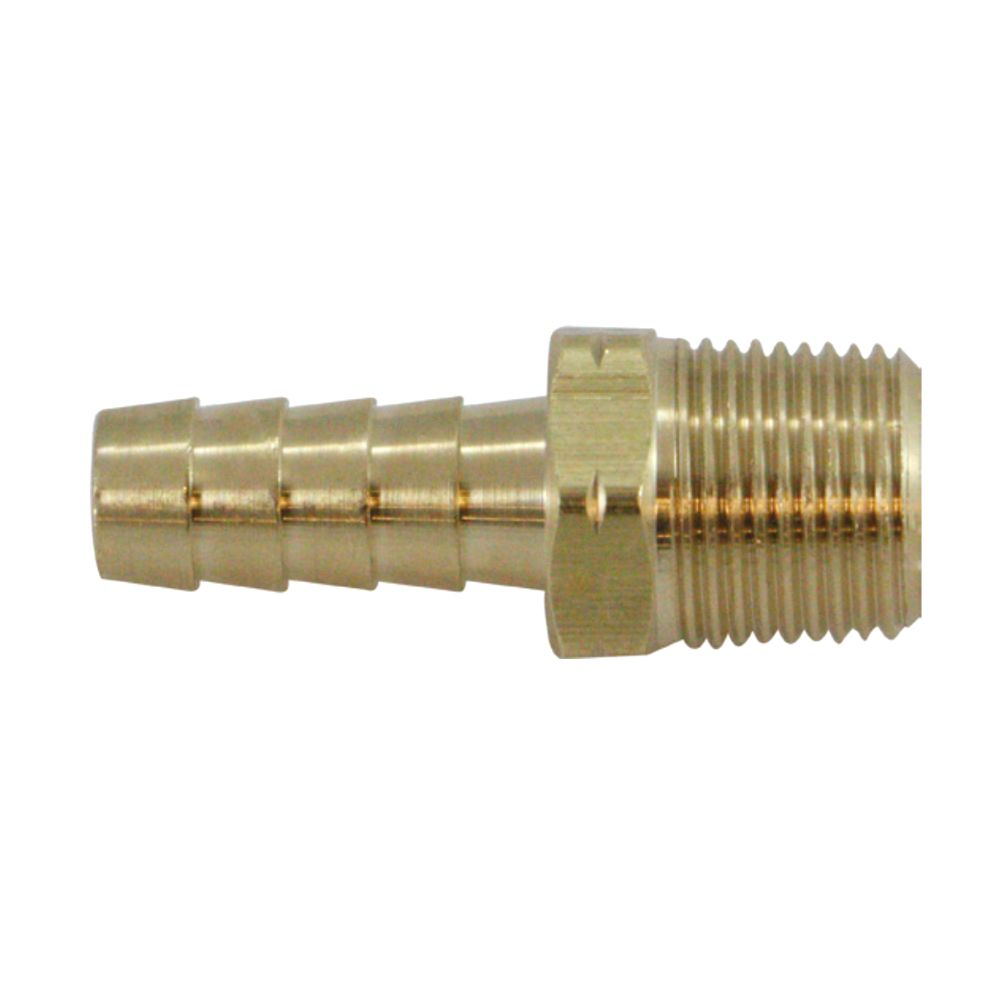

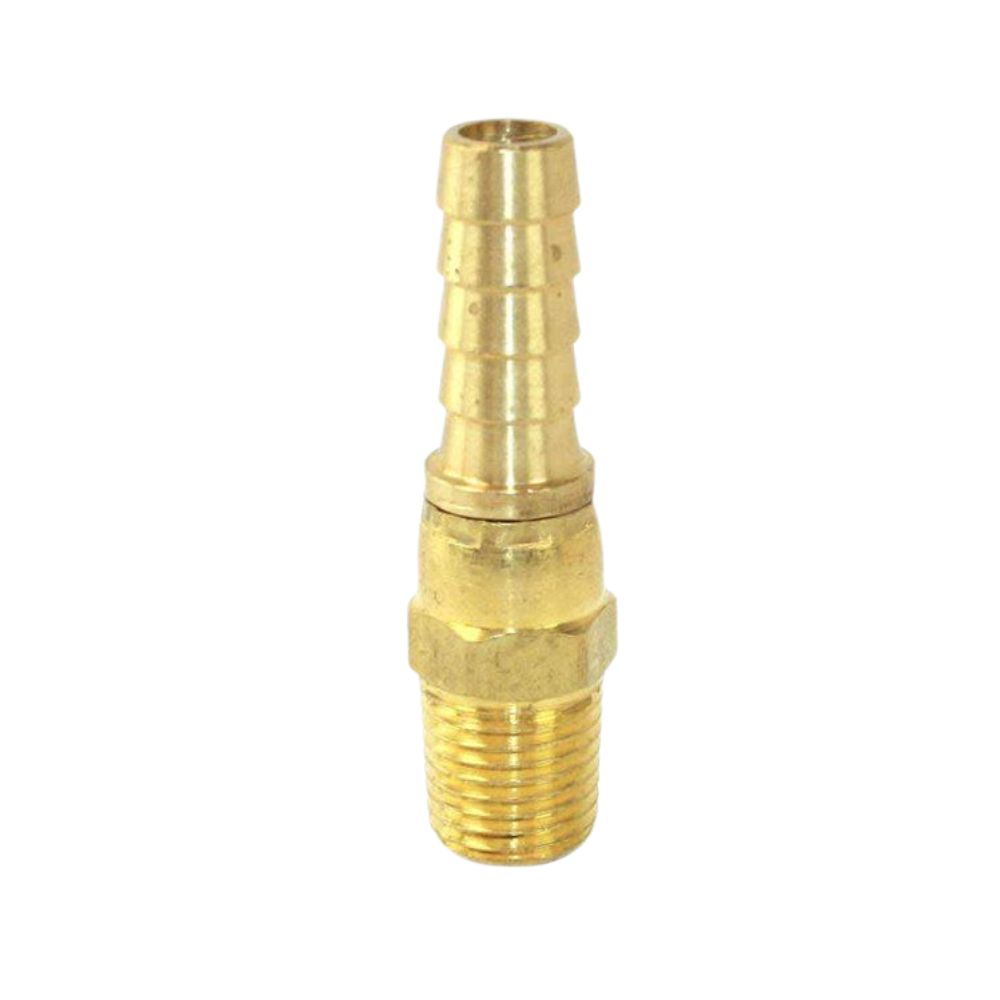

BRASS HOSE BARB FITTINGS
Our barb fittings are
available in a wide variety of configurations in a number of styles including

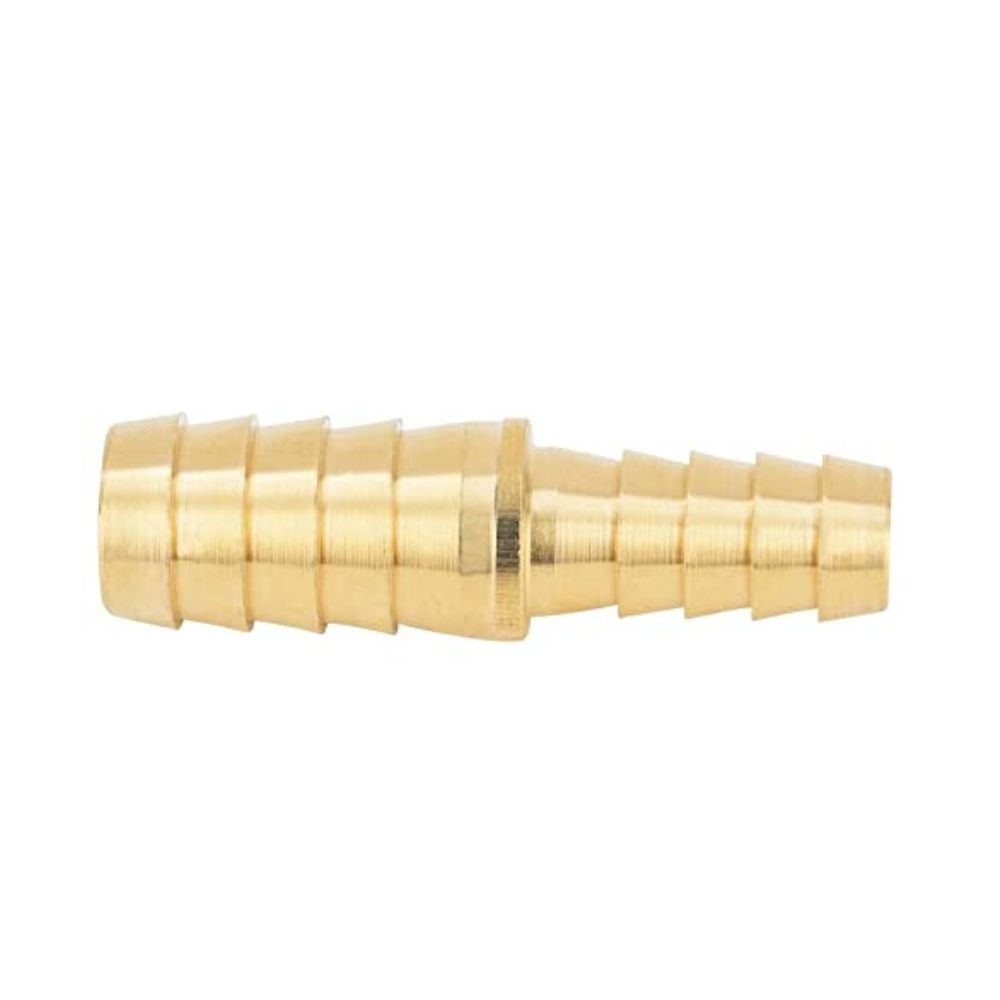

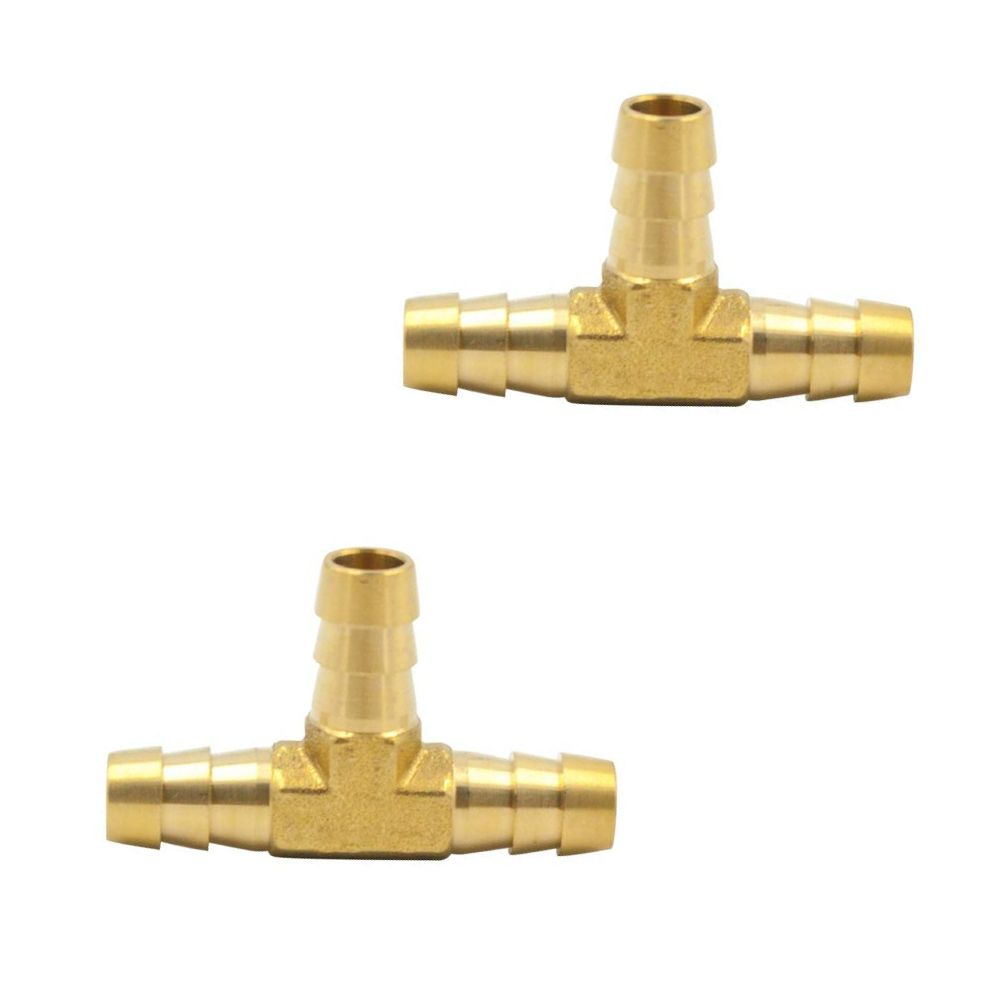

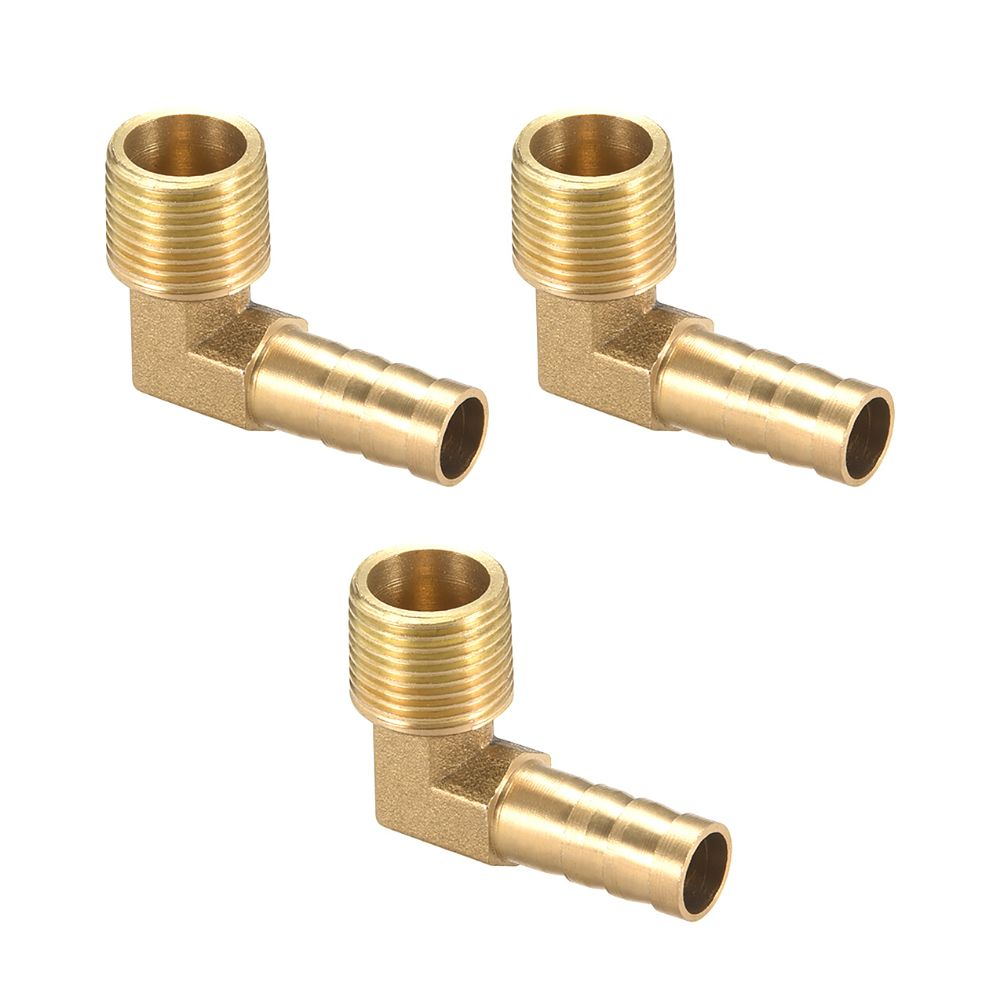

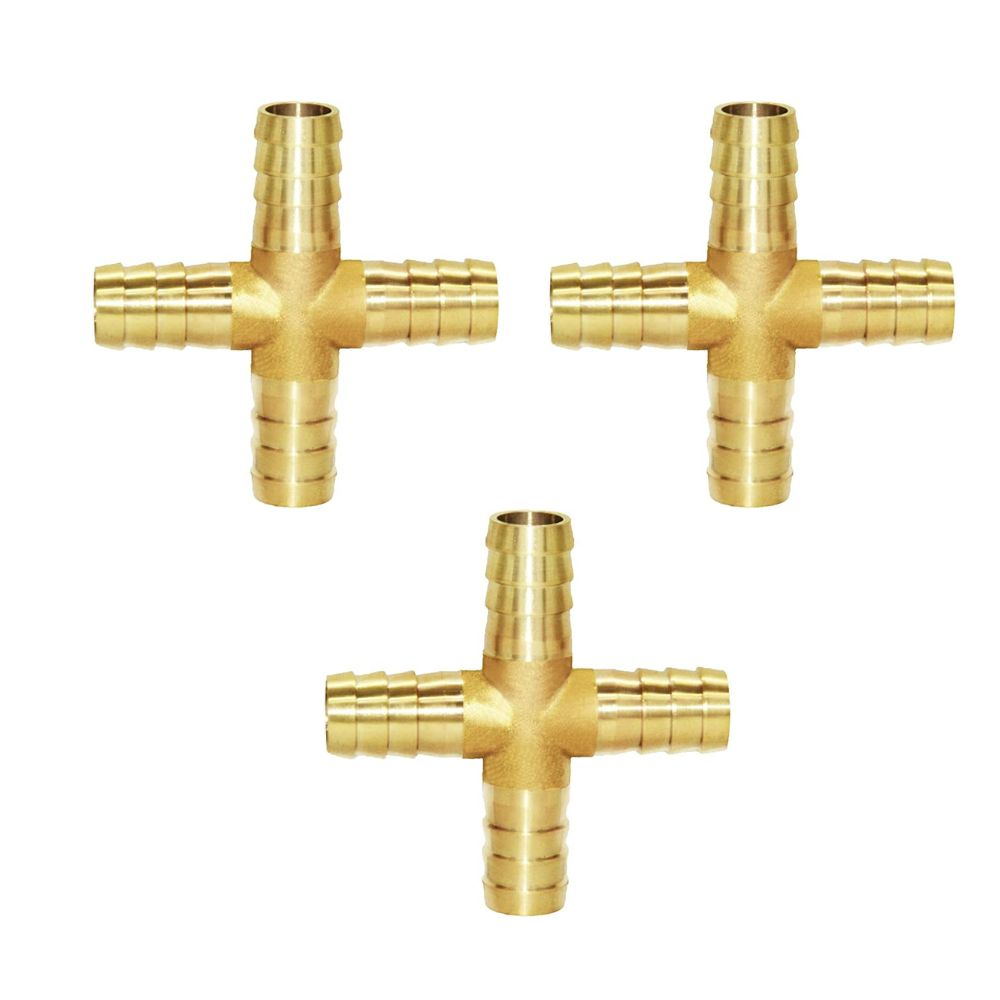

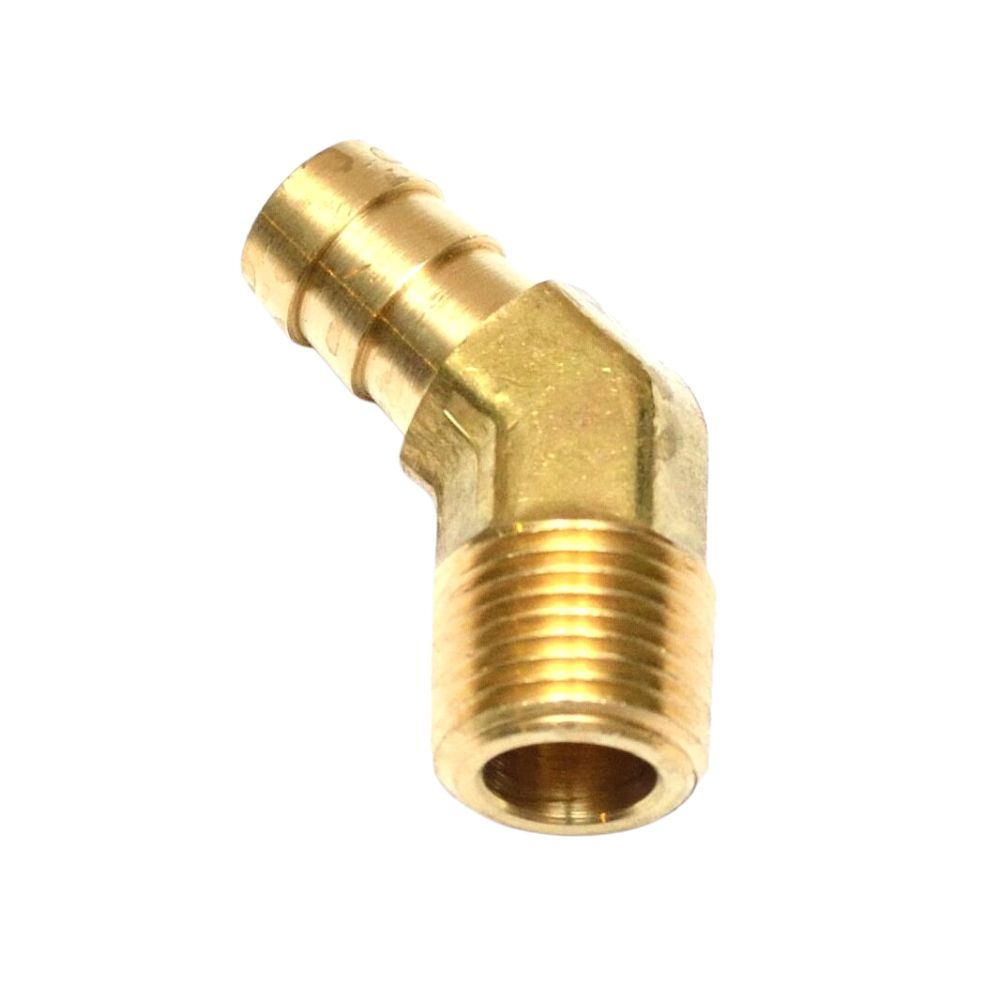

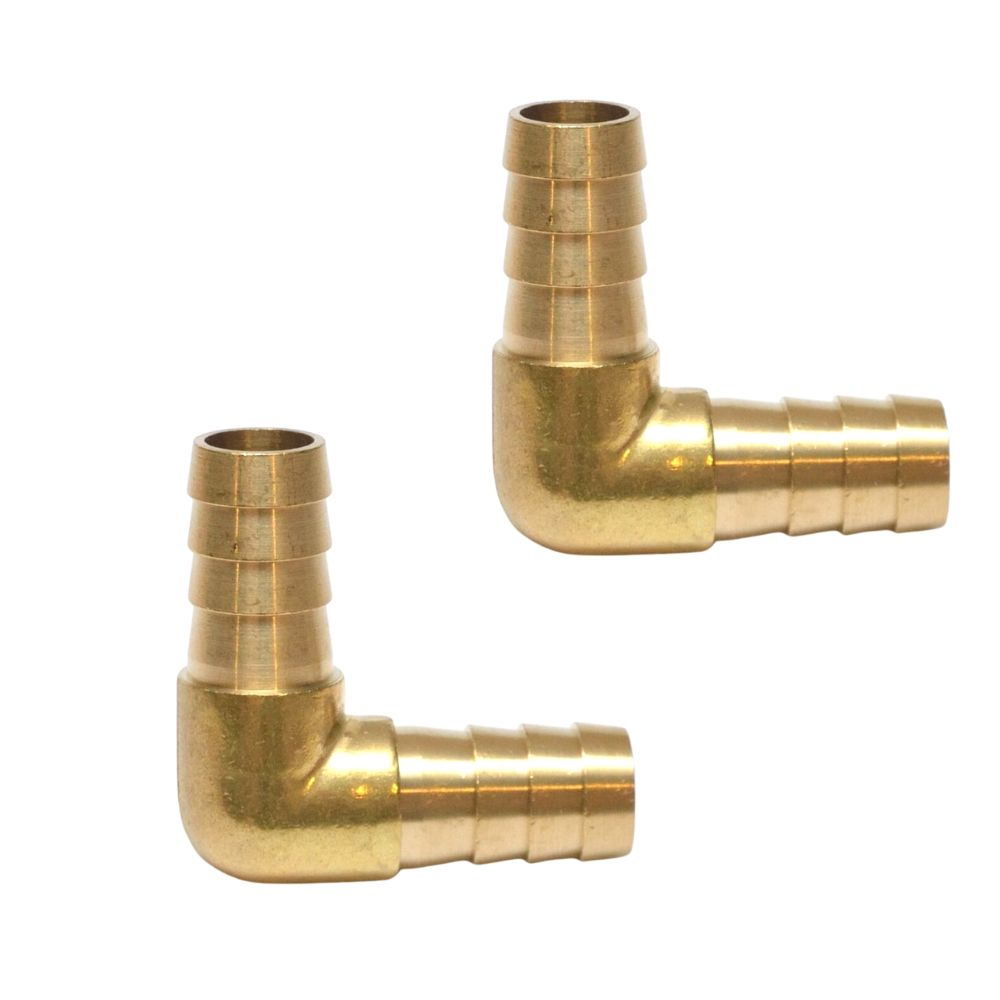

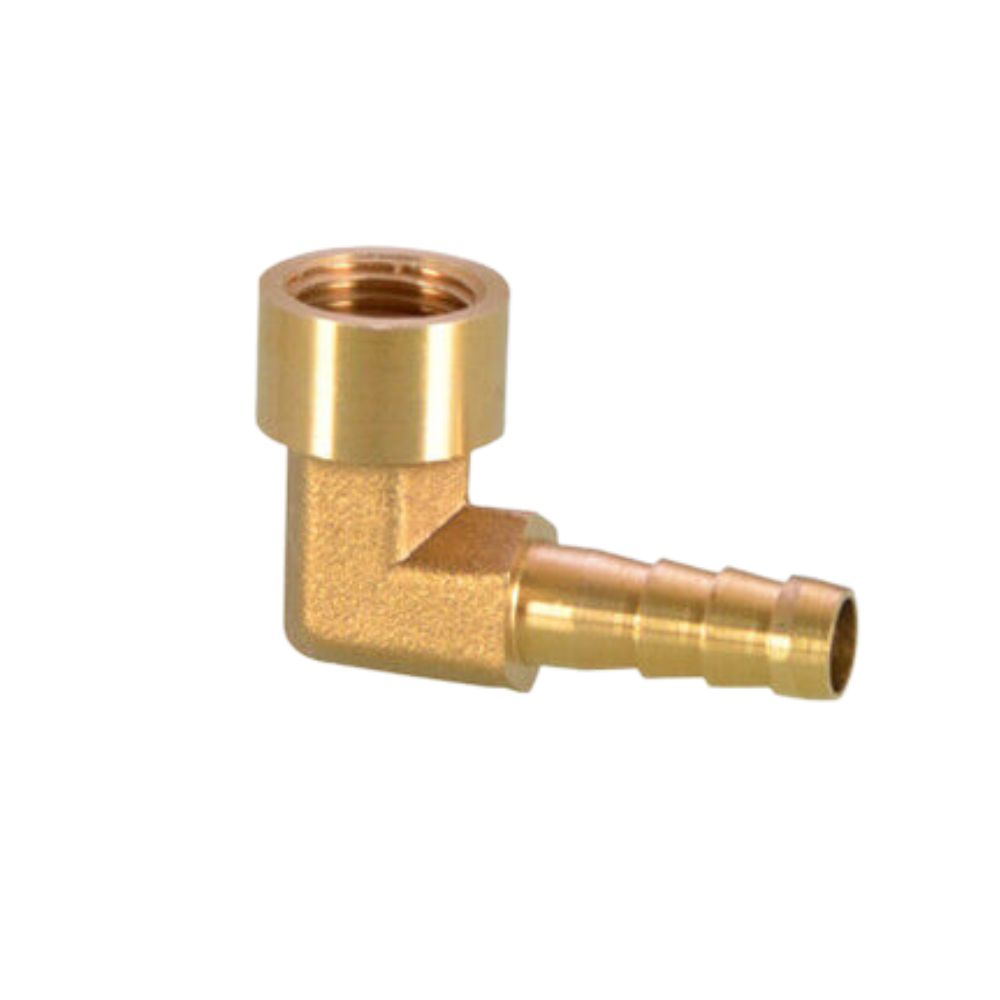

tee, connectors, crosses, straight, elbow type. Barb sizes can be mixed on the
same fitting for applications requiring multiple tubing sizes.
Hose Barb fittings are
parts, which are generally machined and threaded out of brass rods. They are
used for attaching and securing of hoses and their piping.

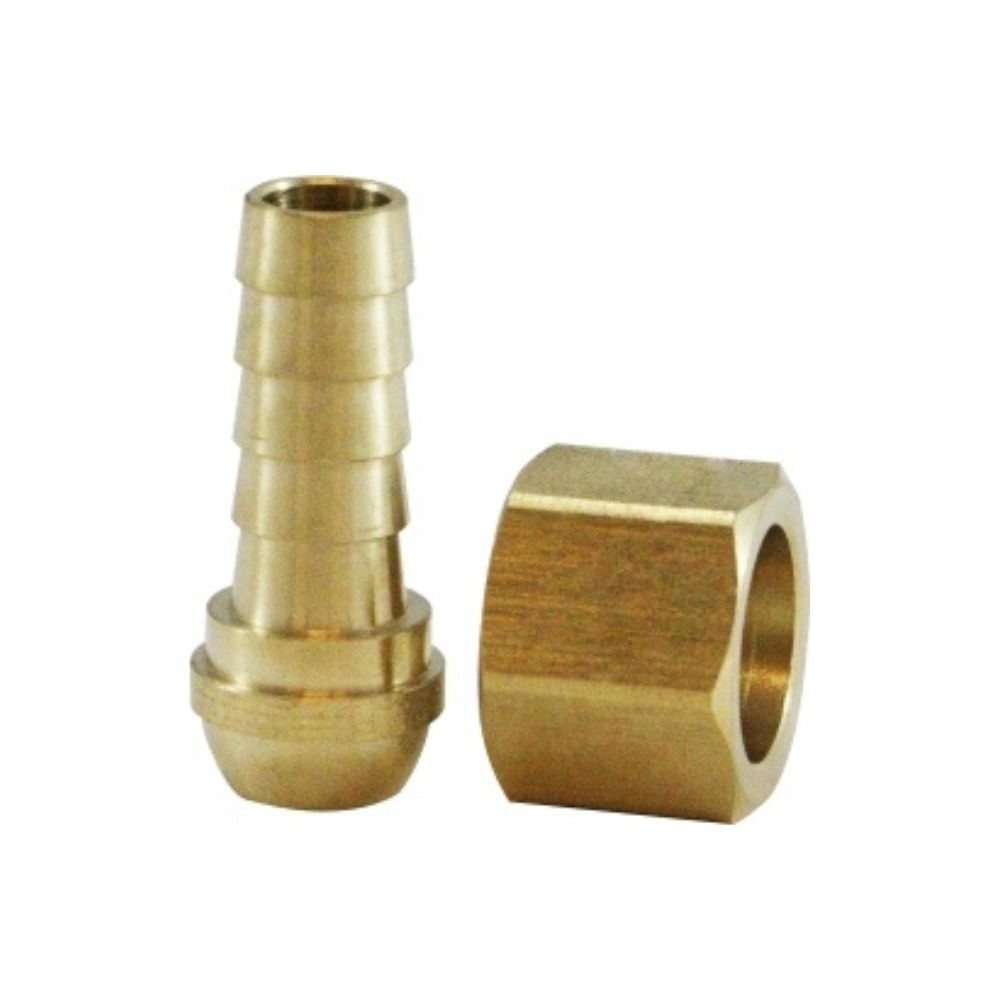

Hose Barbs have hose ends
with a two-piece fitting comprised of a barbed insert and a ferrule. The barbs
on the fitting are backwards slanting for insertion into a hose and the ferrule
is usually crimped or swaged.
Media :Used for transfer of air, water, oils and chemicals.
Finish and Plating : Natural Brass, Nickel, Chrome

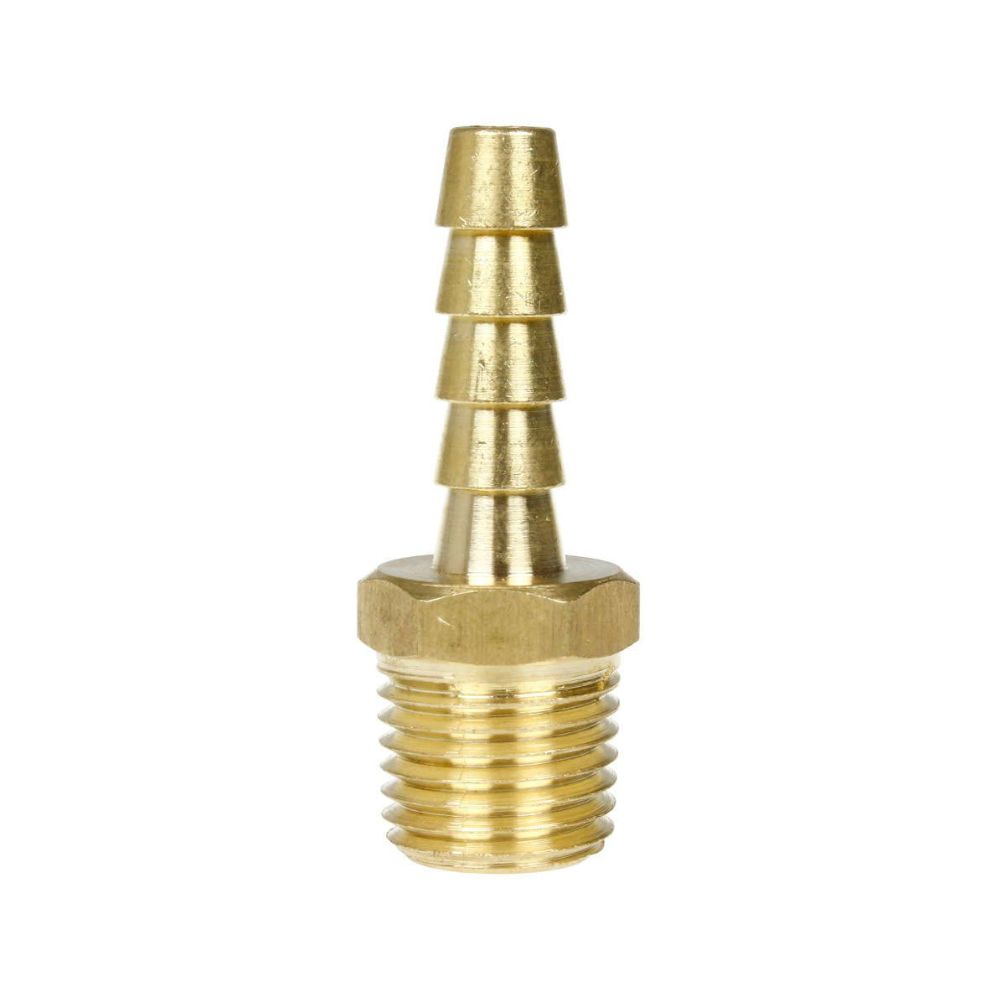

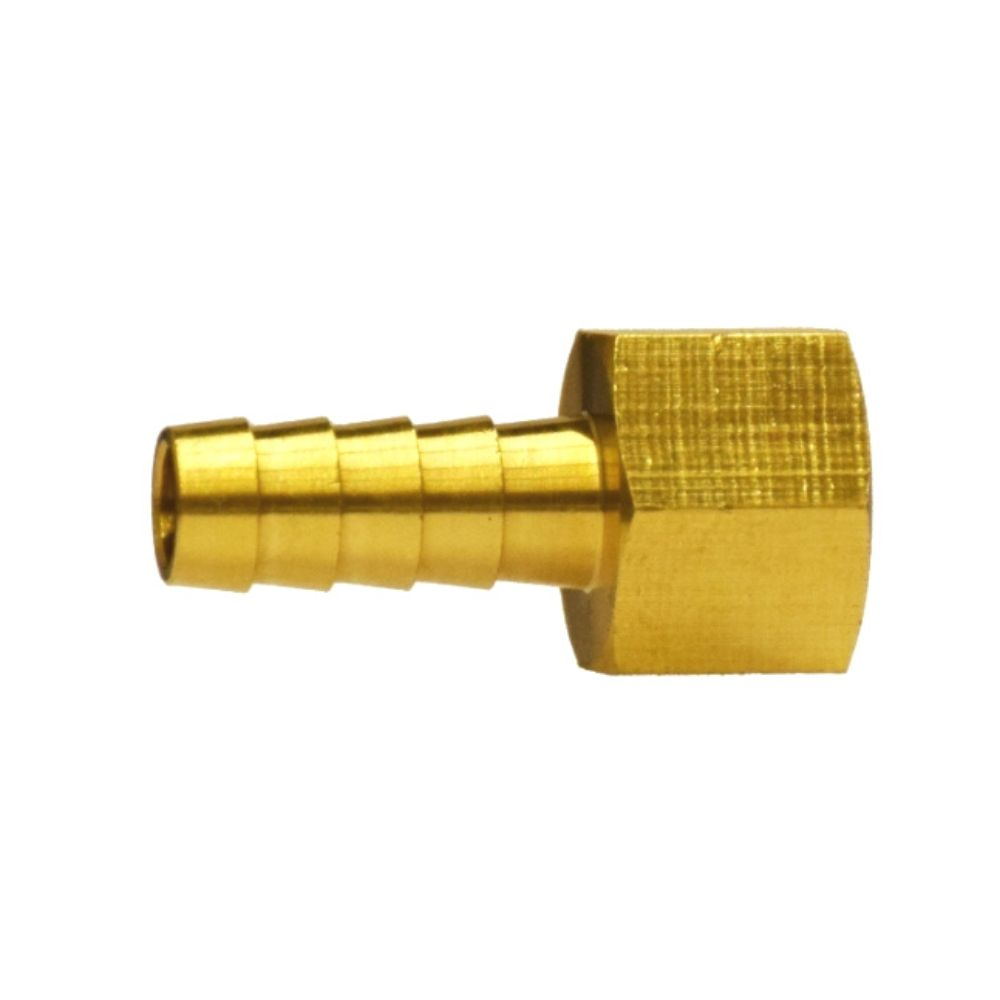

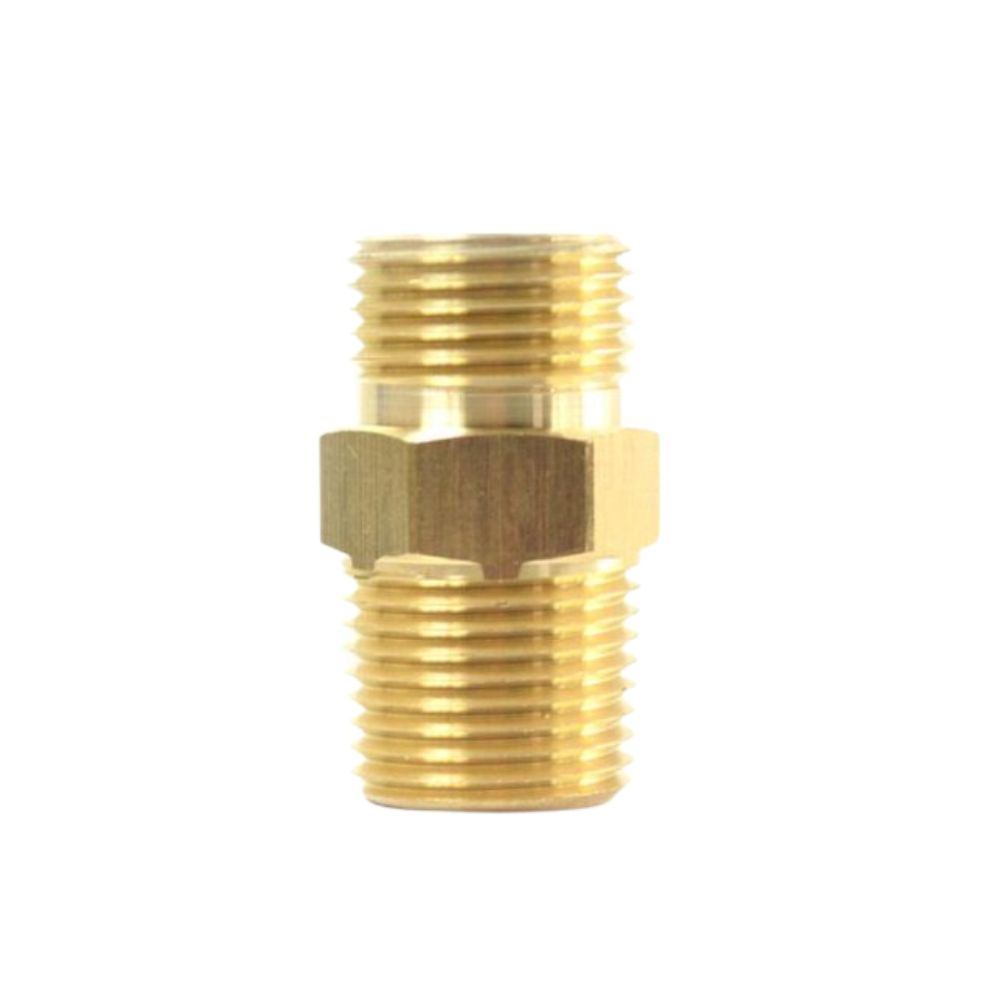

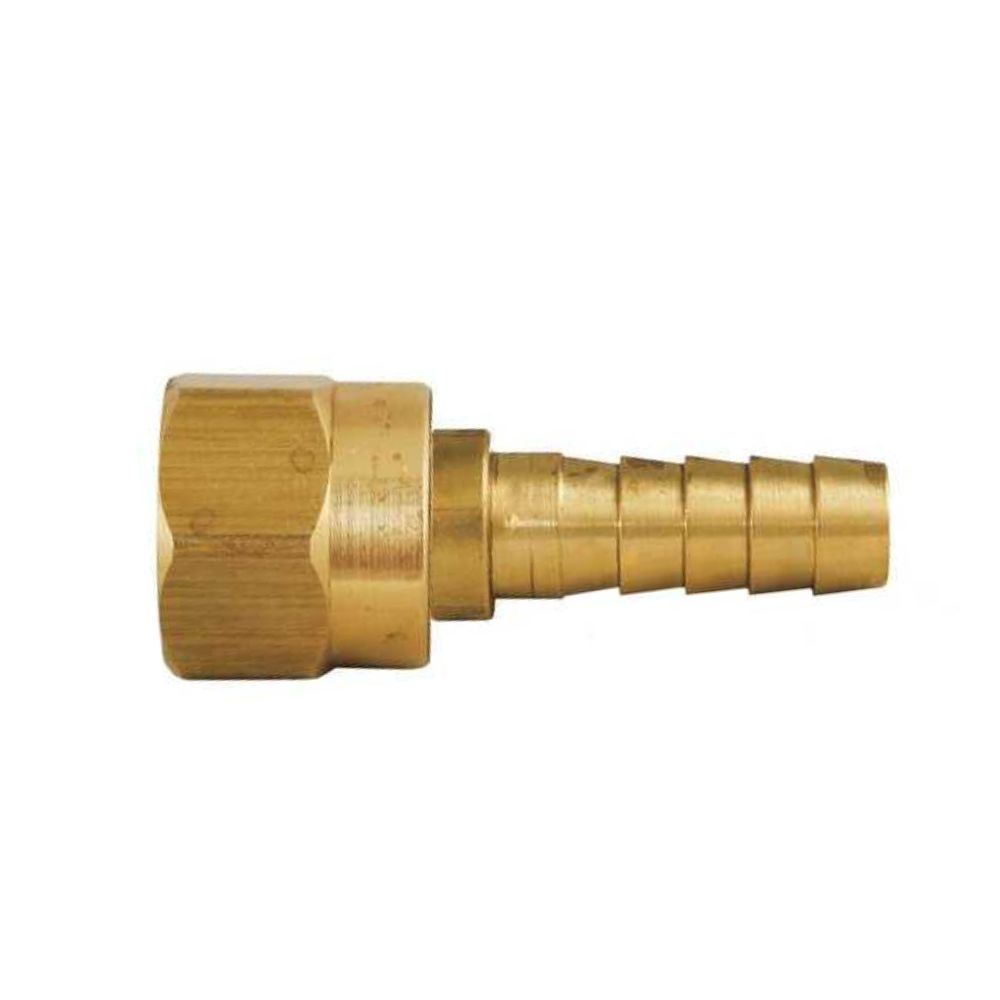

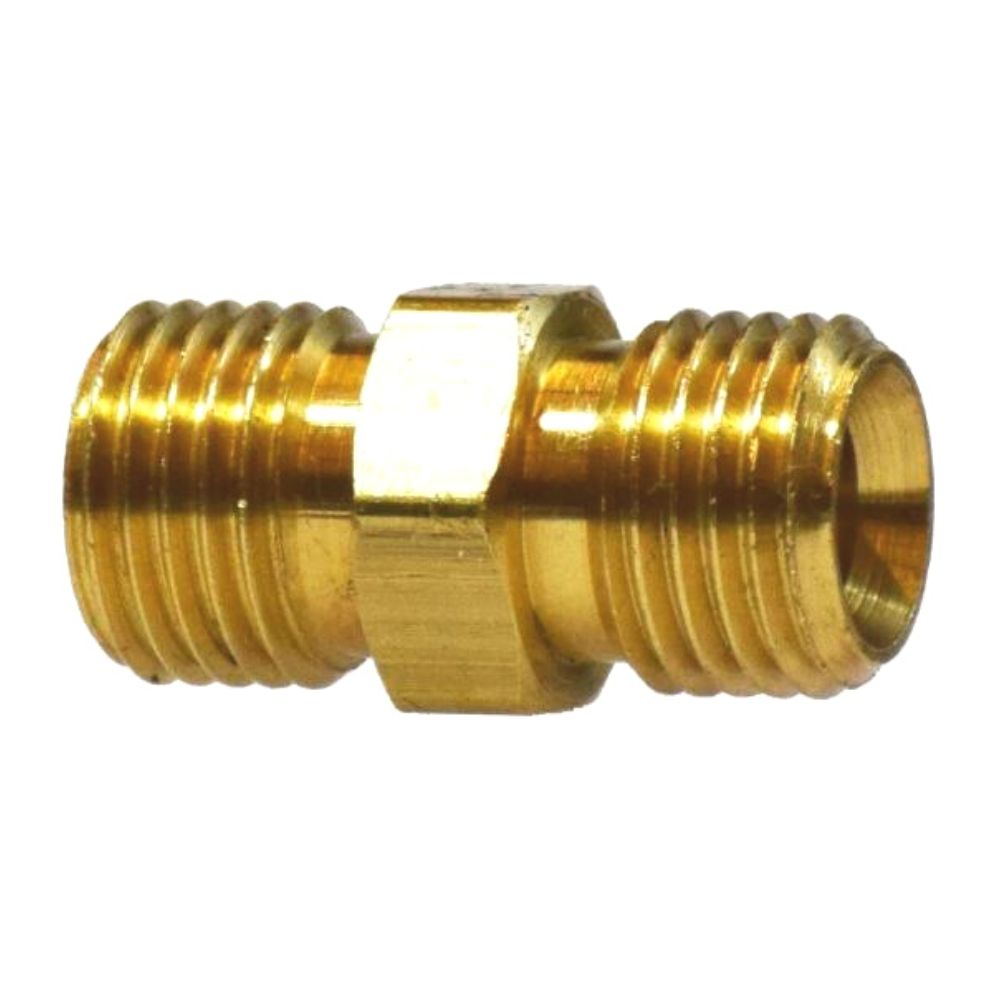

Thread of Brass Hose Nipples : BSP (gas), BSPT, NPT, NPTF, UNF and metric.
Hose Type : Rubber, EPDM, PTFE, LDPE, Reinforced, PVC, Plastic, PVC, Nylon, PU and Braided
Material : CA360 Brass For Bar stock Fittings & CA377 Brass For Forged Fittings.
Temperature & Working Pressure Ranges : From -40 F To +160 F At 150 PSI Maximum
Features : Corrosion resistant, economy range, wide thread choice, specials available as per customer drawings and specifications.
