BRASS JIS 37 DEGREE FLARE FITTINGS
Brass JIC 37° flare fittings
are designed for use on specialty, low pressure fluid lines where a plated
steel or stainless steel adapter is not preferred. They are NOT designed for
high pressure hydraulic service. Flare fittings are easy to disassemble and can
be reassembled many times with no effect on the seal, however brass is a soft
material and susceptible to distortion, cracking, cross threading, etc. when
over tightened. As a general guide only, they may have an intermittent
temperature range of -54°C (-65°F) to +121°C (+250°F), however at wide
temperature ranges the maximum pressure rating drops significantly.

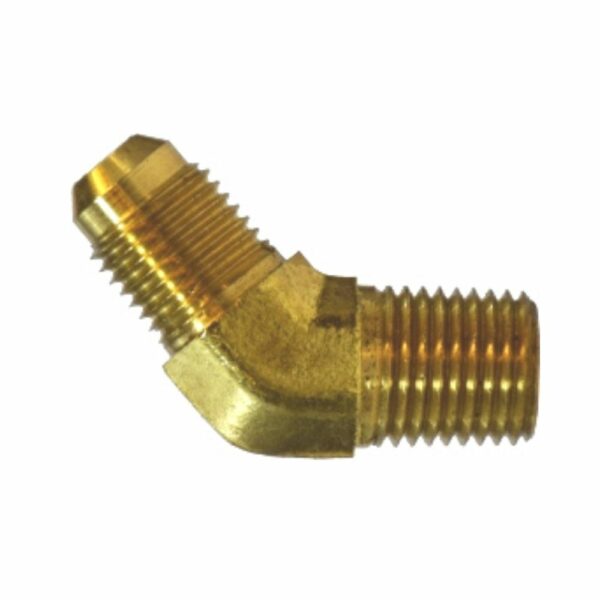

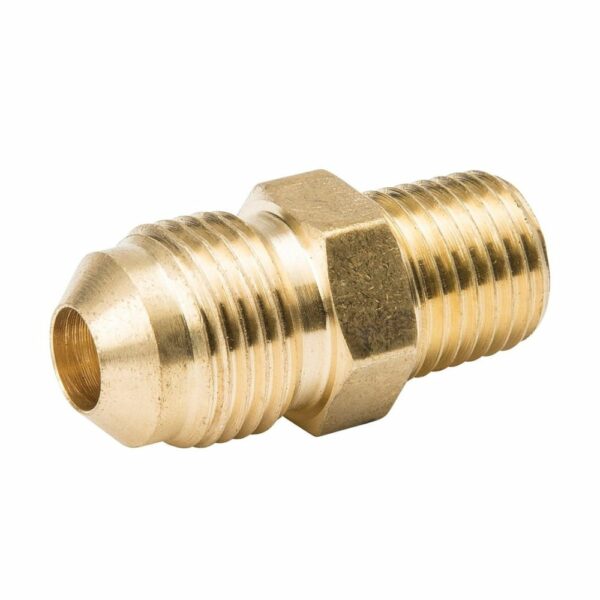

Types of Brass JIS 37 degree Flare Fittings: Male Straight Adapter, Female Straight Adapter, Straight Tube Union, 90 Degree Forged Flare Elbow and 45 Degree Forged Flare Elbow.
Finish and Plating: Natural Brass
Thread of Brass Pipe Nipples: BSP (gas), BSPT, NPT, NPTF, UNF and
metric.
Material : CA360 Brass for Bar stock Fittings & CA377 Brass For Forged Fittings. Brass IS-319 Grade III or Brass Free Cutting High Grade & any special brass material composition as per customer .
Temperature & Working Pressure Ranges: -54°C (-65°F)
to +120°C (248°F); as a guide only for intermittent usage; at wide temperature
ranges the maximum pressure rating drops significantly. and type of tubing used are important factors. Working pressure up to 2000 psi with a 4:1 safety factor depending
on tube size.
Features: Corrosion resistant,
economy range, wide thread choice, specials available as per customer drawings
and specifications.
